LM..UU-AJ Sraith Is tuaslagán gluaisne líneach ardfheidhmíochta iad imthacaí liathróid líneach inchoigeartaithe a úsáidtear go forleathan i uathoibriú tionsclaíoch, robots, uirlisí meaisín CNC agus réimsí eile. Tá an tsraith seo de tháirgí déanta as ábhair ardcháilíochta le friotaíocht chaitheamh den scoth agus tréithe cuimilte ísle, ag cinntiú gluaiseacht réidh agus cumas ardualaigh. Ligeann a dhearadh inchoigeartaithe d'úsáideoirí an t -imréiteach imthacaí a choigeartú de réir riachtanais shonracha, ag soláthar cobhsaíochta agus cruinneas níos fearr. Ina theannta sin, tá dearadh séalaithe ag imthacaí sraithe LM..UU-AJ, rud a chuireann cosc go héifeachtach ar chur isteach deannaigh agus neamhíonachtaí agus a leathnaíonn a saol seirbhíse. Is féidir leis an tsraith seo feidhmíocht den scoth a choinneáil cibé acu an bhfuil sé ag feidhmiú ag luas ard nó faoi choinníollacha ualaigh troma, rud a chiallaíonn gur rogha iontach é dóibh siúd atá ag leanúint tairiscint líneach éifeachtach agus bheacht. $ $ $

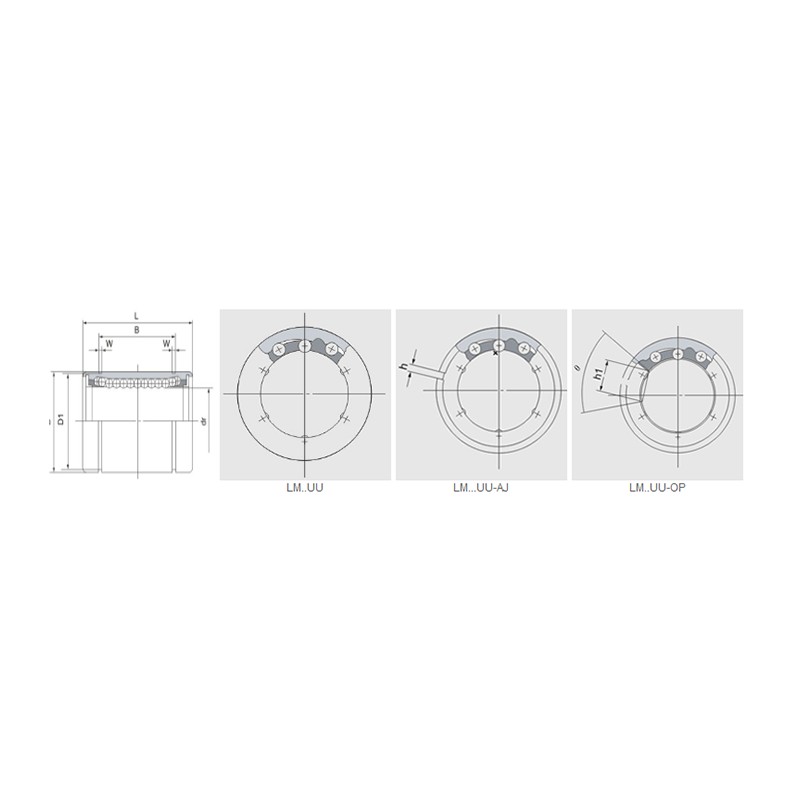

Paraiméadair Táirge
| Coimeádán roisín | Trastomhas seafta ainmniúil | Dr | Mór -thoisí agus caoinfhulaingt | Éicneacht | Imréiteach gathacha (uas) | Rátáil Bunúsach Luchtaigh (KN) | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LM… UU | Ciorcad liathróide | Meáchan (kg) | Lm… uu-aj | Ciorcad liathróide | Ualach | Lm… uu-op | Ciorcad liathróide | Meáchan (kg) | mm | mm | Glacadh | Glacadh | D MM | Lamháltas (μM) | L MM | Lamháltas (μM) | B mm | Lamháltas (μM) | W (mm) | D1 (mm) | H (mm) | H1 (mm) | θ | Cruinneas | In airde | Dinimiciúil | Statach | |
| LM… UU | Ciorcad liathróide | Ualach | Lm… uu-aj | Ciorcad liathróide | Ualach | Lm… uu-op | Ciorcad liathróide | Ualach | Cruinneas | In airde | Lamháltas (μM) | Lamháltas (μM) | Lamháltas (μM) | Cruinneas | In airde | CO N. | CO N. | |||||||||||
| Lm3 | 4 | 1.35 | - | - | - | - | - | - | 3 | 3 | 0/-5 | 0/-8 | 7 | 0/-9 | 10 | 0/-120 | - | - | - | - | - | - | - | 4 | 8 | -3 | 69 | 105 |
| LM4 | 4 | 1.9 | - | - | - | - | - | - | 4 | 4 | 0/-5 | 0/-8 | 8 | 0/-9 | 12 | 0/-120 | - | - | - | - | - | - | - | 4 | 8 | -3 | 88 | 127 |
| Lm5uu | 4 | 4 | - | - | - | - | - | - | 5 | 5 | 0/-5 | 0/-8 | 10 | 0/-9 | 15 | 0/-120 | 10.2 | 0/-200 | 1.1 | 9.6 | - | - | - | 4 | 8 | -3 | 167 | 206 |
| Lm6uu | 4 | 7.6 | LM6UU-AJ | 4 | 7.5 | - | - | - | 6 | 6 | 0/-6 | 0/-9 | 12 | 0/-11 | 19 | 0/-200 | 13.5 | 0/-200 | 1.1 | 11.5 | 1 | - | - | 8 | 12 | -3 | 206 | 265 |
| Lm8suu | 4 | 10.4 | LM8SUU-AJ | 4 | 10 | - | - | - | 8 | 8 | 0/-6 | 0/-9 | 15 | 0/-11 | 17 | 0/-200 | 11.5 | 0/-200 | 1.1 | 14.3 | 1 | - | - | 8 | 12 | -3 | 176 | 216 |
| Lm8uu | 4 | 15 | LM8UU-AJ | 4 | 14.7 | - | - | - | 8 | 8 | 0/-6 | 0/-9 | 15 | 0/-11 | 24 | 0/-200 | 17.5 | 0/-200 | 1.1 | 14.3 | 1 | - | - | 8 | 12 | -3 | 274 | 392 |
| Lm10uu | 4 | 29.5 | LM10UU-AJ | 4 | 29 | LM10UU-OP | 3 | 23 | 10 | 10 | 0/-6 | 0/-9 | 19 | 0/-13 | 29 | 0/-200 | 22 | 0/-200 | 1.3 | 18 | 1 | 6.8 | 80 ° | 8 | 12 | -4 | 372 | 549 |
| LM12UU | 4 | 31.5 | LM12UU-AJ | 4 | 31 | LM12UU-OP | 3 | 25 | 12 | 12 | 0/-6 | 0/-9 | 21 | 0/-13 | 30 | 0/-200 | 23 | 0/-200 | 1.3 | 20 | 1.5 | 8 | 80 ° | 8 | 12 | -4 | 510 | 784 |
| LM13UU | 4 | 43 | LM13UU-AJ | 4 | 42 | LM13UU-OP | 3 | 34 | 13 | 13 | 0/-6 | 0/-9 | 23 | 0/-13 | 32 | 0/-200 | 23 | 0/-200 | 1.3 | 22 | 1.5 | 9 | 80 ° | 8 | 12 | -4 | 510 | 784 |
| LM16UU | 5 | 69 | LM16UU-AJ | 5 | 68 | LM16UU-OP | 4 | 52 | 16 | 16 | 0/-6 | 0/-9 | 28 | 0/-13 | 37 | 0/-200 | 26.5 | 0/-200 | 1.6 | 27 | 1.5 | 11 | 80 ° | 8 | 12 | -6 | 774 | 1180 |
| Lm20uu | 5 | 87 | LM20UU-AJ | 5 | 85 | LM20UU-OP | 4 | 69 | 20 | 20 | 0/-7 | 0/-10 | 32 | 0/-16 | 42 | 0/-200 | 30.5 | 0/-200 | 1.6 | 30.5 | 1.5 | 11 | 60 ° | 10 | 15 | -6 | 882 | 1370 |
| Lm25uu | 6 | 220 | LM25UU-AJ | 6 | 216 | LM25UU-OP | 5 | 188 | 25 | 25 | 0/-7 | 0/-10 | 40 | 0/-16 | 59 | 0/-300 | 41 | 0/-300 | 1.85 | 38 | 2 | 12 | 50 ° | 10 | 15 | -6 | 980 | 1570 |
| Lm30uu | 6 | 250 | LM30UU-AJ | 6 | 245 | LM30UU-OP | 5 | 210 | 30 | 30 | 0/-7 | 0/-10 | 45 | 0/-16 | 64 | 0/-300 | 44.5 | 0/-300 | 1.85 | 43 | 2.5 | 15 | 50 ° | 10 | 15 | -8 | 1570 | 2740 |
| Lm35uu | 6 | 390 | LM35UU-AJ | 6 | 384 | LM35UU-OP | 5 | 335 | 35 | 35 | 0/-8 | 0/-12 | 52 | 0/-19 | 70 | 0/-300 | 49.5 | 0/-300 | 2.1 | 49 | 2.5 | 17 | 50 ° | 12 | 20 | -8 | 1670 | 3140 |
| Lm40uu | 6 | 585 | LM40UU-AJ | 6 | 579 | LM40UU-OP | 5 | 500 | 40 | 40 | 0/-8 | 0/-12 | 60 | 0/-19 | 80 | 0/-300 | 60.5 | 0/-300 | 2.1 | 57 | 3 | 20 | 50 ° | 12 | 20 | -10 | 2160 | 420 |
| Lm50uu | 6 | 1580 | LM50UU-AJ | 6 | 1560 | LM50UU-OP | 5 | 1340 | 50 | 50 | 0/-8 | 0/-12 | 80 | 0/-19 | 100 | 0/-300 | 74 | 0/-300 | 2.6 | 76.5 | 3 | 25 | 50 ° | 12 | 20 | -13 | 3820 | 7940 |
| Lm60uu | 6 | 1860 | LM60UU-AJ | 6 | 1820 | LM60UU-OP | 5 | 1610 | 60 | 60 | 0/-9 | 0/-15 | 90 | 0/-22 | 110 | 0/-300 | 85 | 0/-300 | 3.15 | 86.5 | 3 | 30 | 50 ° | 17 | 25 | -13 | 4700 | 100 |
| Lm80uu | 6 | 4420 | LM80UU-AJ | 6 | 4300 | LM80UU-OP | 5 | 3650 | 80 | 80 | 0/-9 | 0/-15 | 120 | 0/-22 | 140 | 0/-400 | 105.5 | 0/-400 | 4.15 | 116 | 3 | 40 | 50 ° | 17 | 25 | -20 | 7350 | 160 |
| LM100UU | 6 | 8600 | LM100UU-AJ | 6 | 8540 | LM100UU-OP | 5 | 7200 | 100 | 100 | 0/-10 | 0/-20 | 150 | 0/-25 $ $ $ | 175 | 0/-400 | 125.5 | 0/-400 | 4.15 | 145 | 3 | 50 | 50 ° | 20 | 30 | -20 | 14100 | 34800 |
| LM120UU | 8 | 15000 | LM120UU-AJ | 8 | 14900 | LM120UU-OP | 6 | 11600 | 120 | 120 | 0/-10 | 0/-20 | 180 | 0/-25 | 200 | 0/-400 | 158.6 | 0/-400 | 4.15 | 175 | 3 | 85 | 80 ° | 20 | 30 | -25 | 16400 | 400 |
| LM150UU | 8 | 20250 | LM150UU-AJ | 8 | 20150 | LM150UU-OP | 6 | 15700 | 150 | - | -13 | 0/-25 | 210 | -29 | 240 | 0/-400 | 170.6 | 0/-400 | 5.15 | 204 | 3 | 105 | 80 ° | 25 | 40 | -25 | 21100 | 54300 |
