Is imthacaí rolladh ardfheidhmíochta iad imthacaí isteach sa tsraith SA a úsáidtear go forleathan i dtrealamh meicniúil éagsúla. Le dearadh an imthacaí seo is féidir é a shuiteáil go díreach ar an struchtúr tacaíochta, an próiseas suiteála a shimpliú agus éifeachtúlacht oibre a fheabhsú. Tá cumas iompair ualach den scoth ag imthacaí sraith SA agus is féidir leo friotaíocht a chaitheamh, agus is féidir leo oibriú go cobhsaí faoi choinníollacha ardluais agus ardluais. Tá an cruinneas meaitseála idir an fáinne istigh agus an fáinne seachtrach ard, rud a laghdaíonn cuimilte agus teas go héifeachtach agus a mhéadaíonn saol na seirbhíse. Ina theannta sin, is féidir le dearadh séalaithe imthacaí Sraith SA a chosc go héifeachtach cur isteach ar shalachar agus taise agus dul in oiriúint do thimpeallachtaí oibre crua. Mar gheall ar a bhfeidhmíocht den scoth, baintear úsáid fhorleathan as imthacaí sa tsraith SA in innealra talmhaíochta, ag iompar trealaimh, giniúint cumhachta gaoithe agus réimsí tionsclaíocha eile. $ $ $

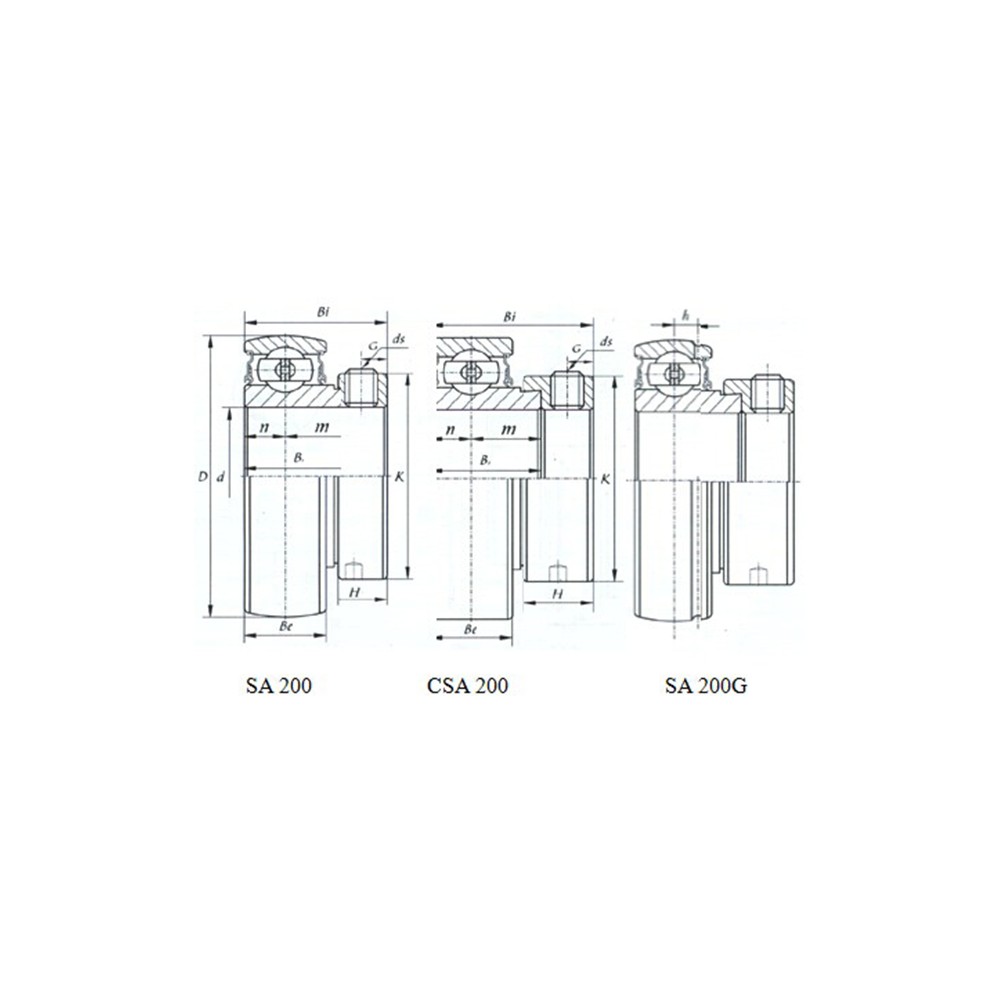

Paraiméadair Táirge
| Uimh. | D | Toisí （mm） | |||||||||
| (mm) | (IThuaidh.) | D | Bi | Is | B1 | n | K | H | G | DO | |
| SA201 | 12 | 40 | 28.6 | 12 | 19.1 | 6.5 | 28.6 | 13.5 | 5 | M6x1 | |
| SA201-8 | 12.7 | 1/2 | 40 | 28.6 | 12 | 19.1 | 6.5 | 28.6 | 13.5 | 5 | 1/4-28unf |
| SA202 | 15 | 40 | 28.6 | 12 | 19.1 | 6.5 | 28.6 | 13.5 | 5 | M6x1 | |
| SA202-10 | 15.875 | 5/8 | 40 | 28.6 | 12 | 19.1 | 6.5 | 28.6 | 13.5 | 5 | 1/4-28unf |
| SA203 | 17 | 40 | 28.6 | 12 | 19.1 | 6.5 | 28.6 | 13.5 | 5 | M6x1 | |
| SA203-11 | 17.462 | 11/16 | 40 | 28.6 | 12 | 19.1 | 6.5 | 28.6 | 13.5 | 5 | 1/4-28unf |
| SA204-12 | 19.05 | 3/4 | 47 | 31 | 14 | 21.5 | 7.5 | 33.3 | 13.5 | 5 | 1/4-28unf |
| SA204 | 20 | 47 | 31 | 14 | 21.5 | 7.5 | 33.3 | 13.5 | 5 | M6x1 | |
| SA205-14 | 22.225 | 7/8 | 52 | 31 | 15 | 21.5 | 7.5 | 38.1 | 13.5 | 5 | 1/4-28unf |
| SA205 | 25 | 52 | 31 | 15 | 21.5 | 7.5 | 38.1 | 13.5 | 5 | M6x1 | |
| SA205-16 | 25.4 | 1 | 52 | 31 | 15 | 21.5 | 7.5 | 38.1 | 13.5 | 5 | 1/4-28unf |
| SA206-18 | 28.575 | 11/8 | 62 | 35.7 | 16 | 23.8 | 9 | 44.5 | 15.9 | 6 | 5/16-24unf |
| SA206 | 30 | 62 | 35.7 | 16 | 23.8 | 9 | 44.5 | 15.9 | 6 | M8x1.0 | |
| SA206-19 | 30.162 | 13/16 | 62 | 35.7 | 16 | 23.8 | 9 | 44.5 | 15.9 | 6 | 5/16-24unf |
| SA206-20 | 31.75 | 11/4 | 62 | 35.7 | 16 | 23.8 | 9 | 44.5 | 15.9 | 6 | 5/16-24unf |
| SA207-20 | 31.75 | 11/4 | 72 | 38.9 | 17 | 25.4 | 9.5 | 55.6 | 17.5 | 6.5 | 5/16-24unf |
| SA207-22 | 34.925 | 13/8 | 72 | 38.9 | 17 | 25.4 | 9.5 | 55.6 | 17.5 | 6.5 | 5/16-24unf |
| SA207 | 35 | 72 | 38.9 | 17 | 25.4 | 9.5 | 55.6 | 17.5 | 6.5 | M8x1.0 | |
| SA207-23 | 36.513 | 17/16 | 72 | 38.9 | 17 | 25.4 | 9.5 | 55.6 | 17.5 | 6.5 | 5/16-24unf |
| SA208-24 | 38.1 | 11/2 | 80 | 43.7 | 18 | 30.2 | 11 | 60.3 | 18.3 | 6.5 | 5/16-24unf |
| SA208-25 | 39.688 | 19/16 | 80 | 43.7 | 18 | 30.2 | 11 | 60.3 | 18.3 | 6.5 | 5/16-24unf |
| SA208 | 40 | 80 | 43.7 | 18 | 30.2 | 11 | 60.3 | 18.3 | 6.5 | M8x1.0 | |
| SA209-26 | 41.275 | 15/8 | 85 | 43.7 | 19 | 30.2 | 11 | 63.5 | 18.3 | 6.5 | 5/16-24unf |
| SA209-27 | 42.863 | 11/6 | 85 | 43.7 | 19 | 30.2 | 11 | 63.5 | 18.3 | 6.5 | 5/16-24unf |
| SA209 | 45 | 85 | 43.7 | 19 | 30.2 | 11 | 63.5 | 18.3 | 6.5 | M8x1.0 | |
| SA209-28 | 44.45 | 13/4 | 85 | 43.7 | 19 | 30.2 | 11 | 63.5 | 18.3 | 6.5 | 5/16-24unf |
| SA210-30 | 47.625 | 17/8 | 90 | 43.7 | 20 | 30.2 | 11 | 69.9 | 18.3 | 6.5 | 5/16-24unf |
| SA210-31 | 49.213 | 15/16 | 90 | 43.7 | 20 | 30.2 | 11 | 69.9 | 18.3 | 6.5 | 5/16-24unf |
| SA210 | 50 | 90 | 43.7 | 20 | 30.2 | 11 | 69.9 | 18.3 | 6.5 | M8x1.0 | |
| SA211-32 | 50.8 | 2 | 100 | 48.4 | 24 | 32.4 | 12 | 76.2 | 20.7 | 8 | 3/8-24unf |
| SA211-34 | 53.975 | 21/8 | 100 | 48.4 | 24 | 32.4 | 12 | 76.2 | 20.7 | 8 | 3/8-24unf |
| SA211 | 55 | 100 | 48.4 | 24 | 32.4 | 12 | 76.2 | 20.7 | 8 | M10x1.25 | |
| SA211-35 | 55.563 | 23/16 | 100 | 48.4 | 24 | 32.4 | 12 | 76.2 | 20.7 | 8 | 3/8-24unf |
| SA212-36 | 57.15 | 21/4 | 110 | 53.1 | 24 | 33.4 | 12 | 84.2 | 22.3 | 8 | 3/8-24unf |
| SA212 | 60 | 110 | 53.1 | 24 | 33.4 | 12 | 84.2 | 22.3 | 8 | M10x1.25 | |
| SA212-38 | 60.325 | 23/8 | 110 | 53.1 | 24 | 33.4 | 12 | 84.2 | 22.3 | 8 | 3/8-24unf $ $ $ |
