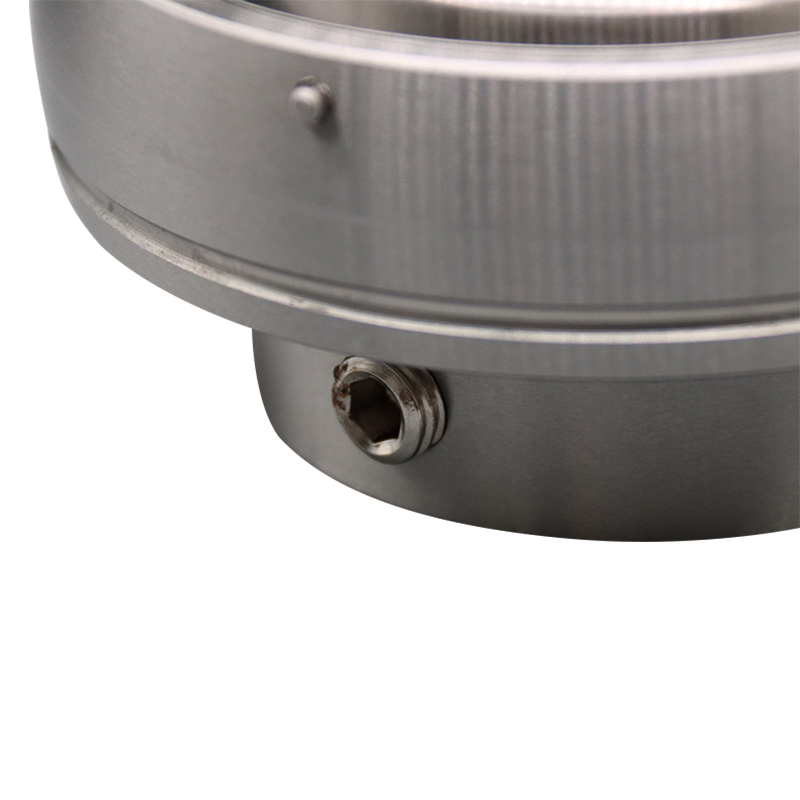

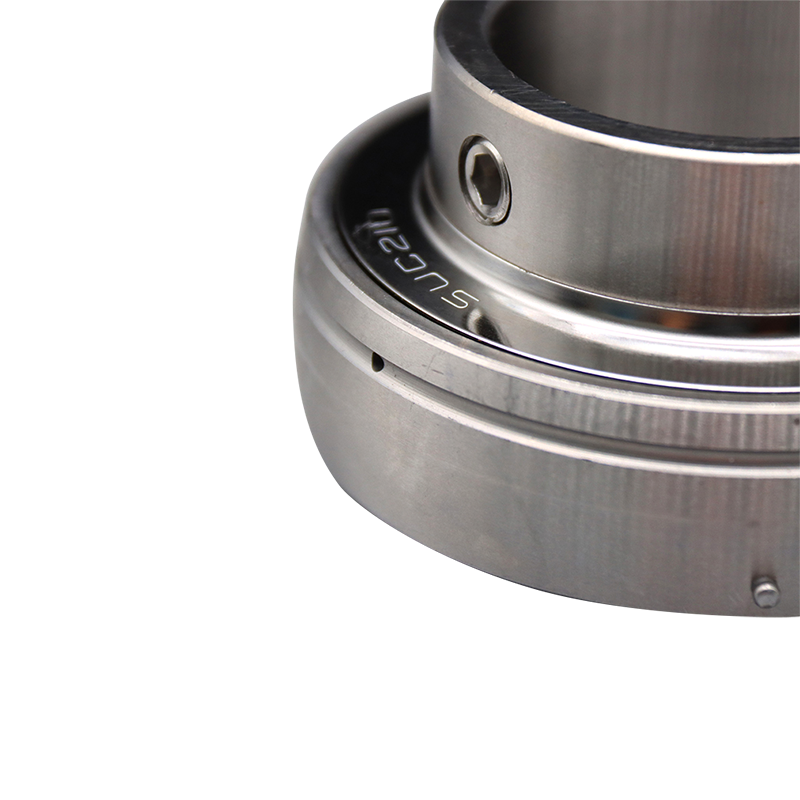

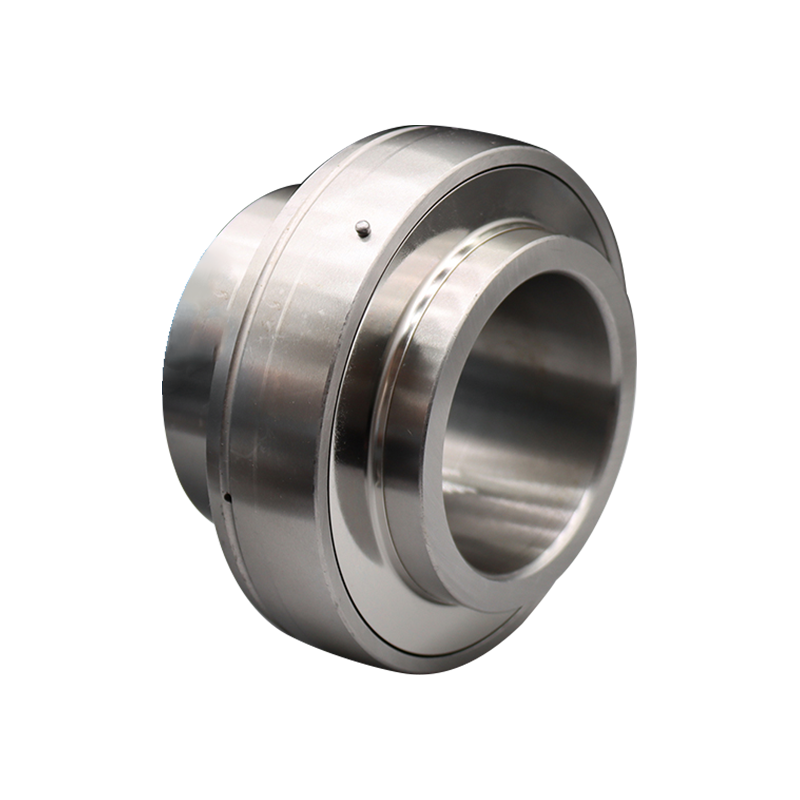

UC200 Sraith Is éard atá i gceist le hiompar ná imthacaíocht ardfheidhmíochta a úsáidtear go forleathan i dtrealamh meicniúil. I measc na ngnéithe dearaidh tá éascaíocht suiteála agus cothabhála, rud a chiallaíonn go bhfuil sé oiriúnach do thimpeallachtaí éagsúla oibre. De ghnáth bíonn struchtúr tithíochta comhtháite ag an tsraith UC200 ar féidir leo ualaí gathacha móra agus ualaí aiseach a sheasamh agus cumais fhrith-fhrithchaiteacha maithe a sholáthar. Úsáidtear cruach ardcháilíochta taobh istigh den imthacaí chun friotaíocht ard-chaitheamh agus saol fada seirbhíse a chinntiú. Tagann an tsraith seo de imthacaí isteach i samhlacha agus i méideanna éagsúla chun freastal ar riachtanais éagsúla feidhmithe agus úsáidtear é go coitianta in innealra talmhaíochta, ag iompar trealaimh agus innealra tionsclaíoch. Ina theannta sin, tá imthacaí sraitheanna UC200 feistithe le cineálacha éagsúla feistí séalaithe chun sceitheadh ramhar a chosc agus cur isteach ar ábhair shalaithe seachtracha, ag feabhsú a gcobhsaíochta agus a n -iontaofacht oibre. $ $ $
Paraiméadair Táirge

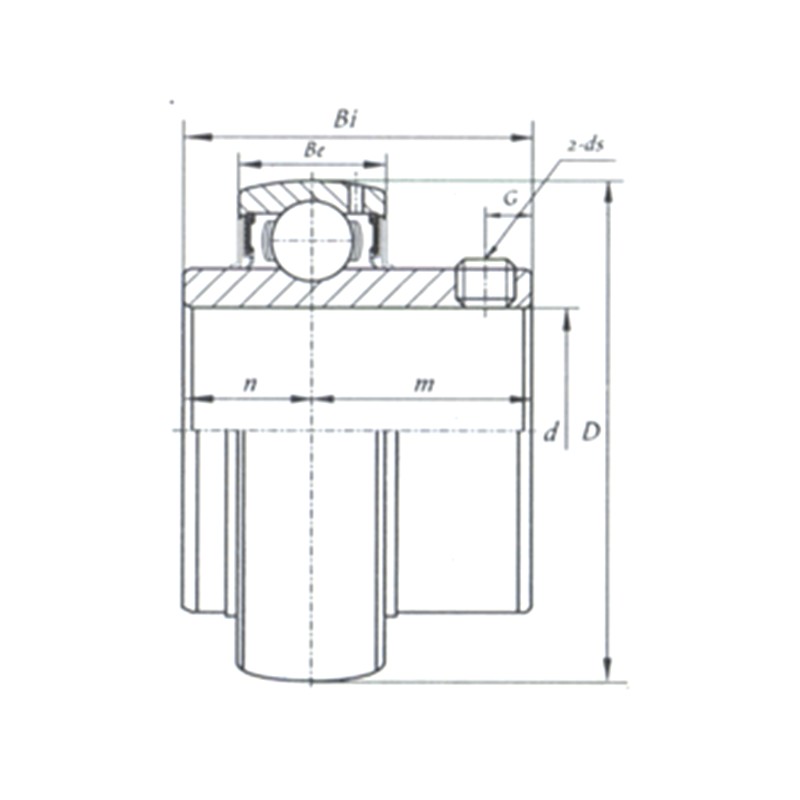

| UiMh. | D | Toisí （mm） | |||||||
| (mm) | (IThuaidh.) | D | Bi | Is | n | m | G | DO | |
| UCW201 | 12 | 40 | 27.4 | 14 | 11.5 | 15.9 | 4 | M5x0.8 | |
| UCW202 | 15 | 40 | 27.4 | 14 | 11.5 | 15.9 | 4 | M5x0.8 | |
| UCW203 | 17 | 40 | 27.4 | 14 | 11.5 | 15.9 | 4 | M5x0.8 | |
| UC201 | 12 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | M6x1.0 | |
| UC201-8 | 12.7 | 0.5 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | 1/4-28unf |
| UC202 | 15 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | M6x1.0 | |
| UC202-10 | 15.875 | 0.625 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | 1/4-28unf |
| UC203 | 17 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | M6x1.0 | |
| UC203-11 | 17.463 | 0.6875 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | 1/4-28unf |
| UC204-12 | 19.05 | 0.75 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | 1/4-28unf |
| UC204 | 20 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | M6x1.0 | |
| UC205-14 | 22.225 | 0.875 | 52 | 34 | 17 | 14.3 | 19.7 | 5.5 | 1/4-28unf |
| UC205-15 | 23.813 | 15/16 | 52 | 34 | 17 | 14.3 | 19.7 | 5.5 | 1/4-28unf |
| UC205 | 25 | 52 | 34 | 17 | 14.3 | 19.7 | 5.5 | M6x1.0 | |
| UC205-16 | 25.4 | 1 | 52 | 34 | 17 | 14.3 | 19.7 | 5.5 | 1/4-28unf |
| UC206-18 | 28.575 | 1.125 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5.5 | 1/4-28unf |
| UC206 | 30 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5.5 | M6x1.0 | |
| UC206-19 | 30.163 | 1.1875 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5.5 | 1/4-28unf |
| UC206-20 | 31.75 | 1.25 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5.5 | 1/4-28unf |
| UC207-20 | 31.75 | 1.25 | 72 | 42.9 | 20 | 17.5 | 25.4 | 6.5 | 5/16-24unf |
| UC207-21 | 33.338 | 1.3125 | 72 | 42.9 | 20 | 17.5 | 25.4 | 6.5 | 5/16-24unf |
| UC207-22 | 34.925 | 1.375 | 72 | 42.9 | 20 | 17.5 | 25.4 | 6.5 | 5/16-24unf |
| UC207 | 35 | 72 | 42.9 | 20 | 17.5 | 25.4 | 6.5 | M8x1.0 | |
| UC207-23 | 36.513 | 1.4375 | 72 | 42.9 | 20 | 17.5 | 25.4 | 6.5 | 5/16-24unf |
| UC208-24 | 38.1 | 1.5 | 80 | 49.2 | 21 | 19 | 30.2 | 8 | 5/16-24unf |
| UC208-25 | 39.688 | 1.5625 | 80 | 49.2 | 21 | 19 | 30.2 | 8 | 5/16-24unf |
| UC208 | 40 | 80 | 49.2 | 21 | 19 | 30.2 | 8 | M8x1.0 | |
| UC209-26 | 41.275 | 1.625 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | 5/16-24unf |
| UC209-27 | 42.863 | 1.6875 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | 5/16-24unf |
| UC209-28 | 44.45 | 1.75 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | 5/16-24unf |
| UC209 | 45 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | M8x1.0 | |
| UC210-30 | 47.625 | 1.875 | 90 | 51.6 | 24 | 19 | 32.6 | 9.5 | 3/8-24unf |
| UC210-31 | 49.213 | 1-15/16 | 90 | 51.6 | 24 | 19 | 32.6 | 9.5 | 3/8-24unf |
| UC210 | 50 | 90 | 51.6 | 24 | 19 | 32.6 | 9.5 | M10x1.25 | |
| UC210-32 | 50.8 | 2 | 90 | 51.6 | 24 | 19 | 32.6 | 9.5 | 3/8-24unf |
| UC211-32 | 50.8 | 2 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | 3/8-24unf |
| UC211-34 | 53.975 | 2.125 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | 3/8-24unf |
| UC211 | 55 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | M10x1.25 | |
| UC211-35 | 55.563 | 2.1875 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | 3/8-24unf |
| UC212-36 | 57.15 | 2.25 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | 3/8-24unf |
| UC212 | 60 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | M10x1.25 | |
| UC212-38 | 60.325 | 2.375 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | 3/8-24unf |
| UC212-39 | 61.913 | 2.4375 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | 3/8-24unf |
| UC213-40 | 63.5 | 2.5 | 120 | 65.1 | 28 | 25.4 | 39.7 | 10 | 3/8-24unf |
| UC213 | 65 | 120 | 65.1 | 28 | 25.4 | 39.7 | 10 | M10x1.25 | |
| UC214-44 | 69.85 | 2.75 | 125 | 74.6 | 30 | 30.2 | 44.4 | 12 | 7/16-20unf |
| UC214 | 70 | 125 | 74.6 | 30 | 30.2 | 44.4 | 12 | M12X1.5 | |
| UC215-47 | 74.613 | 2.9375 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | 7/16-20unf |
| UC215 | 75 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | M12X1.5 | |
| UC215-48 | 76.2 | 3 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | 7/16-20unf |
| UC216-50 | 79.375 | 3.125 | 140 | 82.6 | 33 | 33.3 | 49.3 | 14 | 7/16-20unf |
| UC216 | 80 | 140 | 82.6 | 33 | 33.3 | 49.3 | 14 | M12X1.5 | |
| UC217-52 | 82.55 | 3.25 | 150 | 85.7 | 35 | 34.1 | 51.6 | 14 | 7/16-20unf |
| UC217 | 85 | 150 | 85.7 | 35 | 34.1 | 51.6 | 14 | M12X1.5 | |
| UC218-56 | 88.9 | 3.5 | 160 | 96 | 37 | 39.7 | 56.3 | 14 | 1/2-20UNF |
| UC218 | 90 | 160 | 96 | 37 | 39.7 | 56.3 | 14 | M12X1.5 $ $ $ | |
