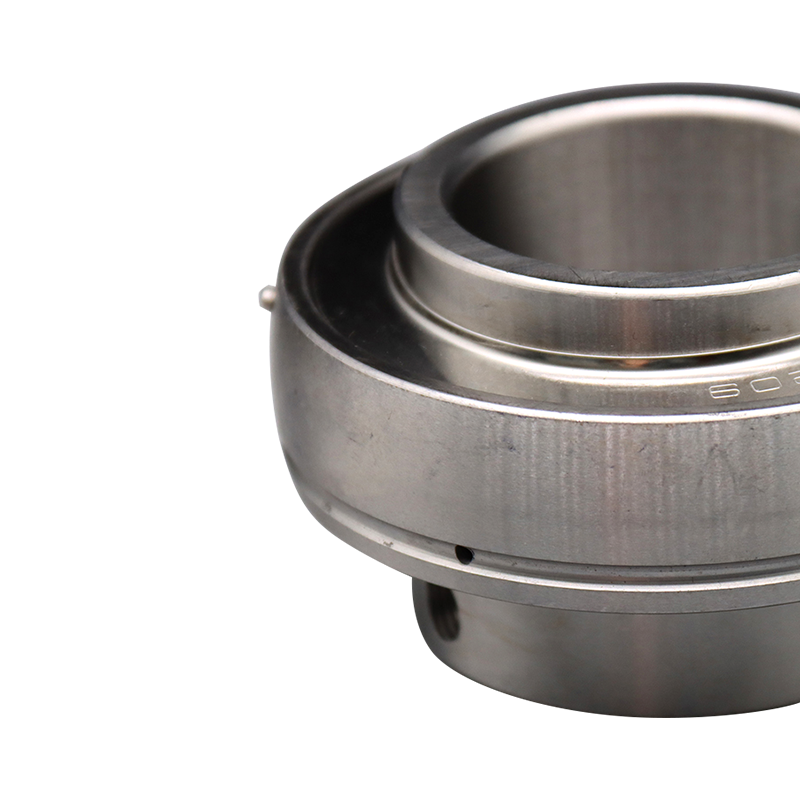

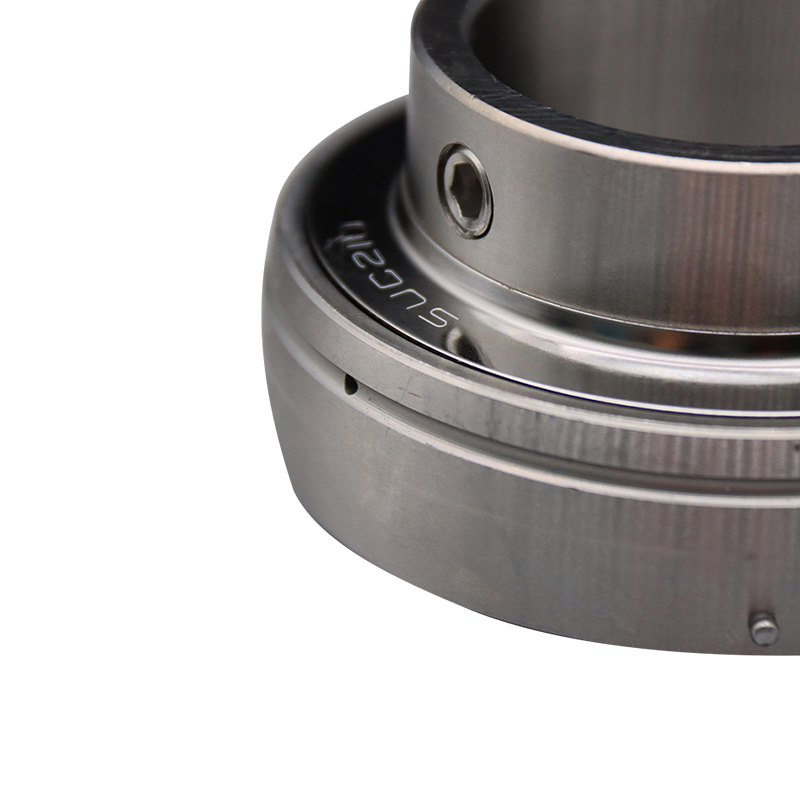

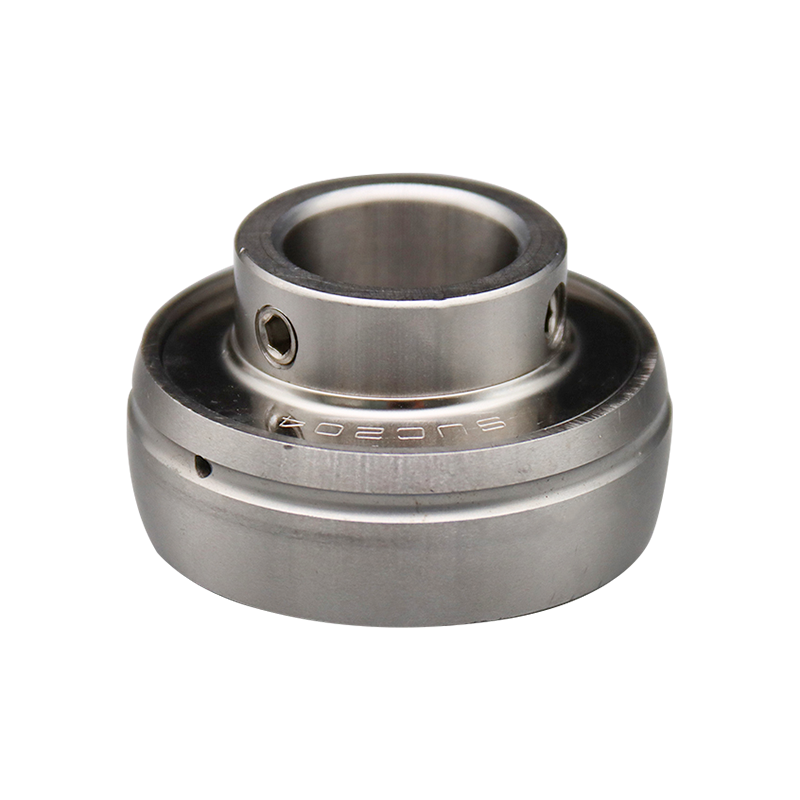

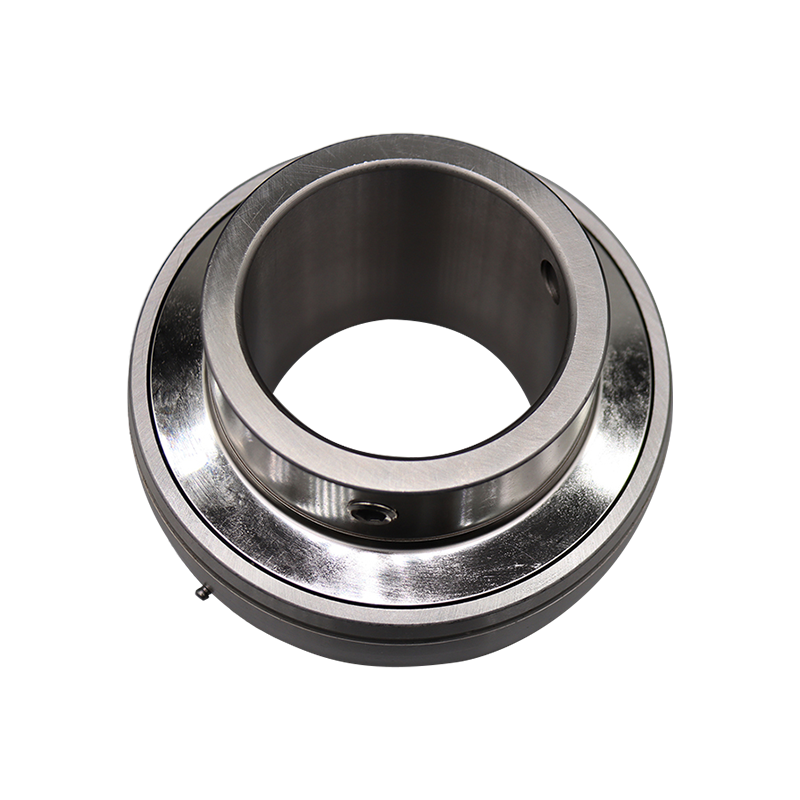

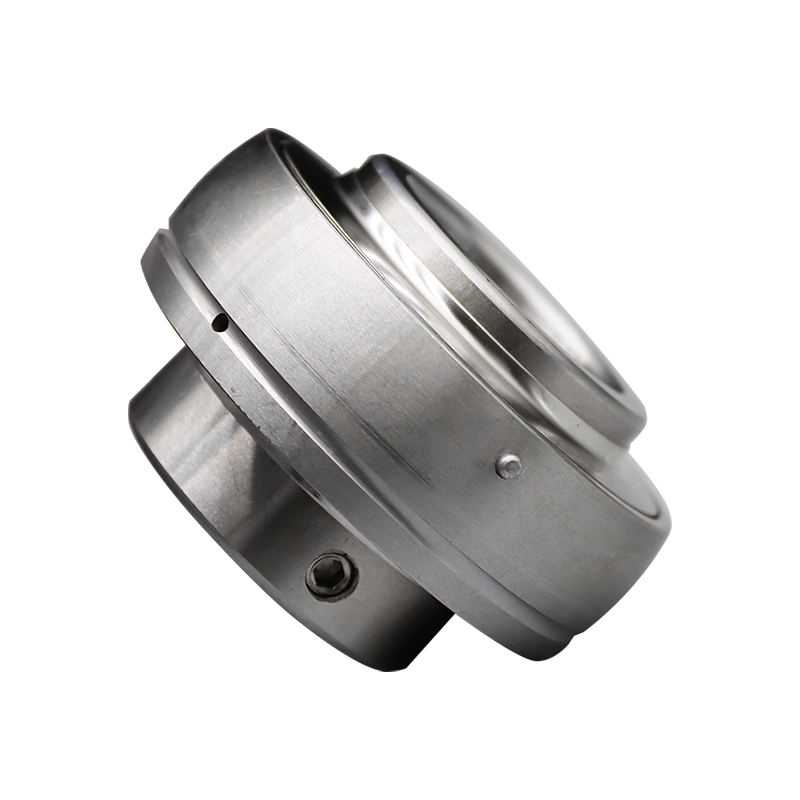

Sraith UC300 Is réiteach ardfheidhmíochta iad imthacaí isteach in imthacaí a úsáidtear go forleathan i dtrealamh agus innealra tionsclaíoch éagsúla. Tá an tsraith seo deartha le haghaidh suiteáil éasca agus is iondúil go n -úsáidtear é chun tacú le codanna rothlacha de shafts. Tá friotaíocht caitheamh aimsire den scoth agus cumas ualach-ualach ag imthacaí a chur isteach ar shraith UC300, agus tá siad oiriúnach d'iarratais ardluais agus oibríochta ardluais. Tá a bhlaosc seachtrach déanta as iarann teilgthe nó as ábhar plaisteach agus tá liathróidí cruach ardcháilíochta taobh istigh chun oibriú réidh agus saol fada seirbhíse a chinntiú. Ina theannta sin, tá feidhmíocht mhaith ina saothraítear rónta ag an tsraith UC300, ar féidir leis deannach agus ábhar salaithe a chosc go héifeachtach dul isteach sa taobh istigh den imthacaí, ag feabhsú a iontaofachta oibre a thuilleadh. Cibé acu in innealra talmhaíochta, trealamh a chur in iúl nó uirlisí cumhachta, is féidir le himthacaí a chur isteach i sraith UC300 réitigh feidhmíochta agus cothabhála eacnamaíocha den scoth a sholáthar agus is fearr le húsáideoirí iad. $ $ $
Paraiméadair Táirge

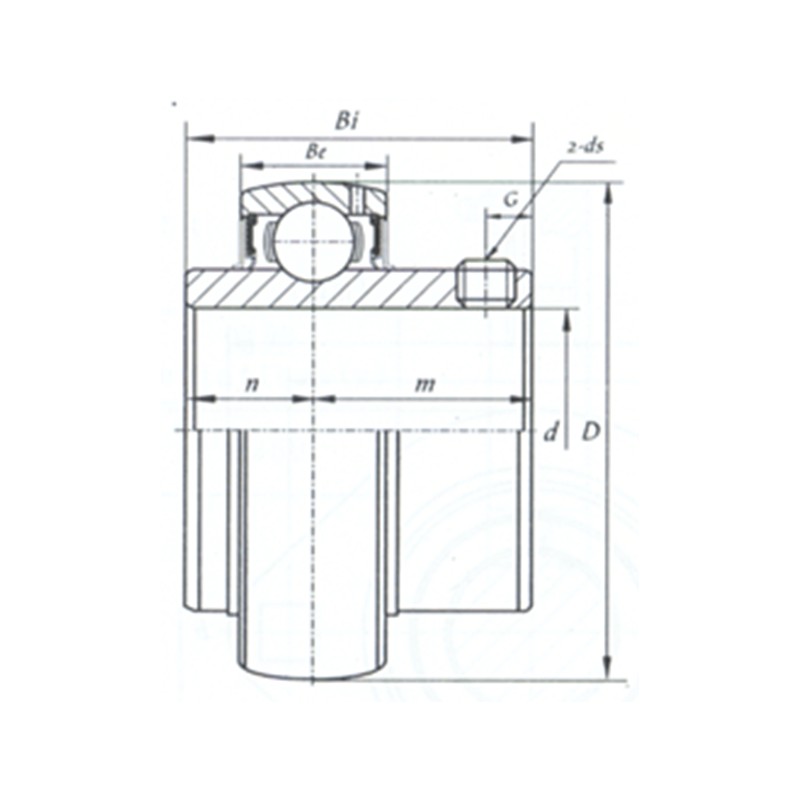

| UiMh. | D | Toisí （mm） | |||||||
| (mm) | (IThuaidh.) | D | Bi | Is | n | m | G | DO | |
| UC305-14 | 22.225 | 0.875 | 62 | 38 | 22 | 15 | 23 | 6 | 1/4-28unf |
| UC305-15 | 23.813 | 15/16 | 62 | 38 | 22 | 15 | 23 | 6 | 1/4-28unf |
| UC305 | 25 | 62 | 38 | 22 | 15 | 23 | 6 | M6x1 | |
| UC305-16 | 25.4 | 1 | 62 | 38 | 22 | 15 | 23 | 6 | 1/4-28unf |
| UC306-18 | 28.575 | 1.125 | 72 | 43 | 24 | 17 | 26 | 6 | 1/4-28unf |
| UC306 | 30 | 72 | 43 | 24 | 17 | 26 | 6 | M6x1 | |
| UC306-19 | 30.163 | 1.1875 | 72 | 43 | 24 | 17 | 26 | 6 | 1/4-28unf |
| UC307-20 | 31.75 | 1.25 | 80 | 48 | 26 | 19 | 29 | 8 | 5/16-24unf |
| UC307-21 | 33.338 | 1.3125 | 80 | 48 | 26 | 19 | 29 | 8 | 5/16-24unf |
| UC307-22 | 34.925 | 1.375 | 80 | 48 | 26 | 19 | 29 | 8 | 5/16-24unf |
| UC307 | 35 | 80 | 48 | 26 | 19 | 29 | 8 | M8x1.0 | |
| UC307-23 | 36.513 | 1.4375 | 80 | 48 | 26 | 19 | 29 | 8 | 5/16-24unf |
| UC308-24 | 38.1 | 1.5 | 90 | 52 | 28 | 19 | 33 | 10 | 3/8-24unf |
| UC308-25 | 39.688 | 1.5625 | 90 | 52 | 28 | 19 | 33 | 10 | 3/8-24unf |
| UC308 | 40 | 90 | 52 | 28 | 19 | 33 | 10 | M10x1.25 | |
| UC309-26 | 41.275 | 1.625 | 100 | 57 | 30 | 22 | 35 | 10 | 3/8-24unf |
| UC309-27 | 42.863 | 1.6875 | 100 | 57 | 30 | 22 | 35 | 10 | 3/8-24unf |
| UC309-28 | 44.45 | 1.75 | 100 | 57 | 30 | 22 | 35 | 10 | 3/8-24unf |
| UC309 | 45 | 100 | 57 | 30 | 22 | 35 | 10 | M10x1.25 | |
| UC310-30 | 47.625 | 1.875 | 110 | 61 | 32 | 22 | 39 | 12 | 1/2-20UNF |
| UC310-31 | 49.213 | 1.9375 | 110 | 61 | 32 | 22 | 39 | 12 | 1/2-20UNF |
| UC310 | 50 | 110 | 61 | 32 | 22 | 39 | 12 | M12X1.5 | |
| UC311-32 | 50.8 | 2 | 120 | 66 | 34 | 25 | 41 | 12 | 1/2-20UNF |
| UC311-34 | 53.975 | 2.125 | 120 | 66 | 34 | 25 | 41 | 12 | 1/2-20UNF |
| UC311 | 55 | 120 | 66 | 34 | 25 | 41 | 12 | M12X1.5 | |
| UC311-35 | 55.563 | 2.1875 | 120 | 66 | 34 | 25 | 41 | 12 | 1/2-20UNF |
| UC312-36 | 57.15 | 2.25 | 130 | 71 | 36 | 26 | 45 | 12 | 1/2-20UNF |
| UC312 | 60 | 130 | 71 | 36 | 26 | 45 | 12 | M12X1.5 | |
| UC312-38 | 60.325 | 2.375 | 130 | 71 | 36 | 26 | 45 | 12 | 1/2-20UNF |
| UC312-39 | 61.913 | 2.4375 | 130 | 71 | 36 | 26 | 45 | 12 | 1/2-20UNF |
| UC313-40 | 63.5 | 2.5 | 140 | 75 | 38 | 30 | 45 | 12 | 1/2-20UNF |
| UC313 | 65 | 140 | 75 | 38 | 30 | 45 | 12 | M12X1.5 | |
| UC314-44 | 69.85 | 2.75 | 150 | 78 | 40 | 33 | 45 | 12 | 1/2-20UNF |
| UC314 | 70 | 150 | 78 | 40 | 33 | 45 | 12 | M12X1.5 | |
| UC315 | 75 | 160 | 82 | 42 | 32 | 50 | 14 | M14x1.5 | |
| UC315-48 | 76.2 | 3 | 160 | 82 | 42 | 32 | 50 | 14 | 9/16-18unf |
| UC316-50 | 79.375 | 3.125 | 170 | 86 | 44 | 34 | 52 | 14 | 9/16-18unf |
| UC316 | 80 | 170 | 86 | 44 | 34 | 52 | 14 | M14x1.5 | |
| UC317-52 | 82.55 | 3.25 | 180 | 96 | 46 | 40 | 56 | 16 | 5/8-18unf |
| UC317 | 85 | 180 | 96 | 46 | 40 | 56 | 16 | M16x1.5 | |
| UC318-56 | 88.9 | 3.5 | 190 | 96 | 48 | 40 | 56 | 16 | 5/8-18unf |
| UC318 | 90 | 190 | 96 | 48 | 40 | 56 | 16 | M16x1.5 | |
| UC319 | 95 | 200 | 103 | 50 | 41 | 62 | 16 | M16x1.5 | |
| UC320 | 100 | 215 | 108 | 54 | 42 | 66 | 18 | M18x1.5 | |
| UC320-64 | 101.6 | 4 | 215 | 108 | 54 | 42 | 66 | 18 | 5/8-18unf |
| UC322 | 110 | 240 | 117 | 60 | 46 | 71 | 20 | M18x1.5 | |
| UC324 | 120 | 260 | 126 | 64 | 51 | 75 | 20 | M18x1.5 | |
| UC326 | 130 | 280 | 135 | 68 | 54 | 81 | 20 | M20X1.5 | |
| UC328 | 140 | 300 | 145 | 72 | 59 | 86 | 20 | M20X1.5 $ $ $ | |
