Sraith LM Is comhpháirt gluaisne líneach ardfheidhmíochta í an sleamhnán líneach caighdeánach líneach a úsáidtear go forleathan i dtrealamh meicniúil agus uathoibrithe éagsúla. Tá an tsraith imthacaí seo déanta as cruach ardcháilíochta agus tá friotaíocht agus friotaíocht creimthe den scoth aici, agus is féidir leo ualaí agus luasanna arda a sheasamh. Mar gheall ar a dhearadh struchtúrach tá an tsuiteáil éasca agus tá sé comhoiriúnach le córais iarnróid treorach éagsúla chun a chinntiú go mbeidh an tairiscint líneach réidh agus cruinneas. Déantar na fáinní inmheánacha agus seachtracha de imthacaí sraith LM a mheaitseáil go beacht agus iad a mheaitseáil le liathróidí ardchaighdeáin chun cuimilte a laghdú agus éifeachtúlacht oibriúcháin a fheabhsú. Ina theannta sin, tá cumais inoiriúnaitheachta teochta agus frith-thruaillithe ag an tsraith imthacaí seo, agus tá siad oiriúnach chun oibriú i dtimpeallachtaí crua. Is roghanna iontacha iad le haghaidh uathoibriú tionsclaíoch, robots, uirlisí meaisín CNC agus réimsí eile. Trí chothabháil agus cothabháil réasúnach, is féidir leathnú suntasach a dhéanamh ar shaol seirbhíse imthacaí sraith LM, ag cinntiú go bhfuil an trealamh cobhsaí. $ $ $
Paraiméadair Táirge

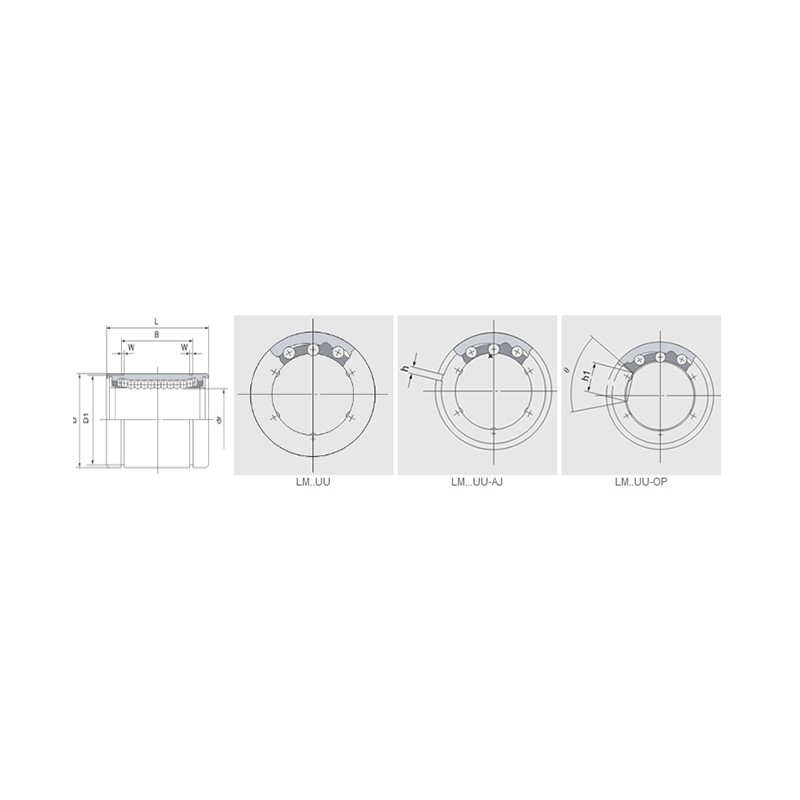

| Coimeádán roisín | Trastomhas seafta ainmniúil | Dr | Mór -thoisí agus caoinfhulaingt | Éicneacht | Imréiteach gathacha (uas) | Rátáil Bunúsach Luchtaigh (KN) | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LM… UU | Ciorcad liathróide | Meáchan (kg) | Lm… uu-aj | Ciorcad liathróide | Ualach | Lm… uu-op | Ciorcad liathróide | Meáchan (kg) | mm | mm | Glacadh | Glacadh | D MM | Lamháltas (μM) | L MM | Lamháltas (μM) | B mm | Lamháltas (μM) | W (mm) | D1 (mm) | H (mm) | H1 (mm) | θ | Cruinneas | In airde | Dinimiciúil | Statach | |
| Lm3 | 4 | 1.35 | - | - | - | - | - | - | 3 | 3 | 0/-5 | 0/-8 | 7 | 0/-9 | 10 | 0/-120 | - | - | - | - | - | - | - | 4 | 8 | -3 | 69 | 105 |
| LM4 | 4 | 1.9 | - | - | - | - | - | - | 4 | 4 | 0/-5 | 0/-8 | 8 | 0/-9 | 12 | 0/-120 | - | - | - | - | - | - | - | 4 | 8 | -3 | 88 | 127 |
| Lm5uu | 4 | 4 | - | - | - | - | - | - | 5 | 5 | 0/-5 | 0/-8 | 10 | 0/-9 | 15 | 0/-120 | 10.2 | 0/-200 | 1.1 | 9.6 | - | - | - | 4 | 8 | -3 | 167 | 206 |
| Lm6uu | 4 | 7.6 | LM6UU-AJ | 4 | 7.5 | - | - | - | 6 | 6 | 0/-6 | 0/-9 | 12 | 0/-11 | 19 | 0/-200 | 13.5 | 0/-200 | 1.1 | 11.5 | 1 | - | - | 8 | 12 | -3 | 206 | 265 |
| Lm8suu | 4 | 10.4 | LM8SUU-AJ | 4 | 10 | - | - | - | 8 | 8 | 0/-6 | 0/-9 | 15 | 0/-11 | 17 | 0/-200 | 11.5 | 0/-200 | 1.1 | 14.3 | 1 | - | - | 8 | 12 | -3 | 176 | 216 |
| Lm8uu | 4 | 15 | LM8UU-AJ | 4 | 14.7 | - | - | - | 8 | 8 | 0/-6 | 0/-9 | 15 | 0/-11 | 24 | 0/-200 | 17.5 | 0/-200 | 1.1 | 14.3 | 1 | - | - | 8 | 12 | -3 | 274 | 392 |
| Lm10uu | 4 | 29.5 | LM10UU-AJ | 4 | 29 | LM10UU-OP | 3 | 23 | 10 | 10 | 0/-6 | 0/-9 | 19 | 0/-13 | 29 | 0/-200 | 22 | 0/-200 | 1.3 | 18 | 1 | 6.8 | 80 ° | 8 | 12 | -4 | 372 | 549 |
| LM12UU | 4 | 31.5 | LM12UU-AJ | 4 | 31 | LM12UU-OP | 3 | 25 | 12 | 12 | 0/-6 | 0/-9 | 21 | 0/-13 | 30 | 0/-200 | 23 | 0/-200 | 1.3 | 20 | 1.5 | 8 | 80 ° | 8 | 12 | -4 | 510 | 784 |
| LM13UU | 4 | 43 | LM13UU-AJ | 4 | 42 | LM13UU-OP | 3 | 34 | 13 | 13 | 0/-6 | 0/-9 | 23 | 0/-13 | 32 | 0/-200 | 23 | 0/-200 | 1.3 | 22 | 1.5 | 9 | 80 ° | 8 | 12 | -4 | 510 | 784 |
| LM16UU | 5 | 69 | LM16UU-AJ | 5 | 68 | LM16UU-OP | 4 | 52 | 16 | 16 | 0/-6 | 0/-9 | 28 | 0/-13 | 37 | 0/-200 | 26.5 | 0/-200 | 1.6 | 27 | 1.5 | 11 | 80 ° | 8 | 12 | -6 | 774 | 1180 |
| Lm20uu | 5 | 87 | LM20UU-AJ | 5 | 85 | LM20UU-OP | 4 | 69 | 20 | 20 | 0/-7 | 0/-10 | 32 | 0/-16 | 42 | 0/-200 | 30.5 | 0/-200 | 1.6 | 30.5 | 1.5 | 11 | 60 ° | 10 | 15 | -6 | 882 | 1370 |
| Lm25uu | 6 | 220 | LM25UU-AJ | 6 | 216 | LM25UU-OP | 5 | 188 | 25 | 25 | 0/-7 | 0/-10 | 40 | 0/-16 | 59 | 0/-300 | 41 | 0/-300 | 1.85 | 38 | 2 | 12 | 50 ° | 10 | 15 | -6 | 980 | 1570 |
| Lm30uu | 6 | 250 | LM30UU-AJ | 6 | 245 | LM30UU-OP | 5 | 210 | 30 | 30 | 0/-7 | 0/-10 | 45 | 0/-16 | 64 | 0/-300 | 44.5 | 0/-300 | 1.85 | 43 | 2.5 | 15 | 50 ° | 10 | 15 | -8 | 1570 | 2740 |
| Lm35uu | 6 | 390 | LM35UU-AJ | 6 | 384 | LM35UU-OP | 5 | 335 | 35 | 35 | 0/-8 | 0/-12 | 52 | 0/-19 | 70 | 0/-300 | 49.5 | 0/-300 | 2.1 | 49 | 2.5 | 17 | 50 ° | 12 | 20 | -8 | 1670 | 3140 |
| Lm40uu | 6 | 585 | LM40UU-AJ | 6 | 579 | LM40UU-OP | 5 | 500 | 40 | 40 | 0/-8 | 0/-12 | 60 | 0/-19 | 80 | 0/-300 | 60.5 | 0/-300 | 2.1 | 57 | 3 | 20 | 50 ° | 12 | 20 | -10 | 2160 | 420 |
| Lm50uu | 6 | 1580 | LM50UU-AJ | 6 | 1560 | LM50UU-OP | 5 | 1340 | 50 | 50 | 0/-8 | 0/-12 | 80 | 0/-19 | 100 | 0/-300 | 74 | 0/-300 | 2.6 | 76.5 | 3 | 25 | 50 ° | 12 | 20 | -13 | 3820 | 7940 |
| Lm60uu | 6 | 1860 | LM60UU-AJ | 6 | 1820 | LM60UU-OP | 5 | 1610 | 60 | 60 | 0/-9 | 0/-15 | 90 | 0/-22 | 110 | 0/-300 | 85 | 0/-300 | 3.15 | 86.5 | 3 | 30 | 50 ° | 17 | 25 | -13 | 4700 | 100 |
| Lm80uu | 6 | 4420 | LM80UU-AJ | 6 | 4300 | LM80UU-OP | 5 | 3650 | 80 | 80 | 0/-9 | 0/-15 | 120 | 0/-22 | 140 | 0/-400 | 105.5 | 0/-400 | 4.15 | 116 | 3 | 40 | 50 ° | 17 | 25 | -20 | 7350 | 160 |
| LM100UU | 6 | 8600 | LM100UU-AJ | 6 | 8540 | LM100UU-OP | 5 | 7200 | 100 | 100 | 0/-10 | 0/-20 | 150 | 0/-25 $ $ $ | 175 | 0/-400 | 125.5 | 0/-400 | 4.15 | 145 | 3 | 50 | 50 ° | 20 | 30 | -20 | 14100 | 34800 |
| LM120UU | 8 | 15000 | LM120UU-AJ | 8 | 14900 | LM120UU-OP | 6 | 11600 | 120 | 120 | 0/-10 | 0/-20 | 180 | 0/-25 | 200 | 0/-400 | 158.6 | 0/-400 | 4.15 | 175 | 3 | 85 | 80 ° | 20 | 30 | -25 | 16400 | 400 |
| LM150UU | 8 | 20250 | LM150UU-AJ | 8 | 20150 | LM150UU-OP | 6 | 15700 | 150 | - | -13 | 0/-25 | 210 | -29 | 240 | 0/-400 | 170.6 | 0/-400 | 5.15 | 204 | 3 | 105 | 80 ° | 25 | 40 | -25 | 21100 | 54300 |
